eFuel 1200W/50A spínaný zdroj

SkyRC eFuel 50A/1200W power supply

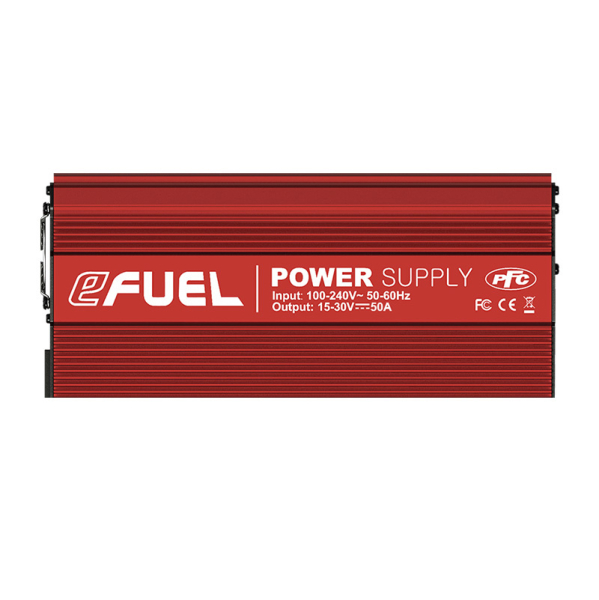

The 1200W output power supply supports 15-30V, and has built-in PFC which is an important aspect in all power supplies. The eFuel is ideal for high-voltage and three-port chargers, as well as other devices. The 100-240-volt power range allows for universal use without the need for DC port settings. High power and functional design allows you to take the power supply on the go and into the field.

Functionality

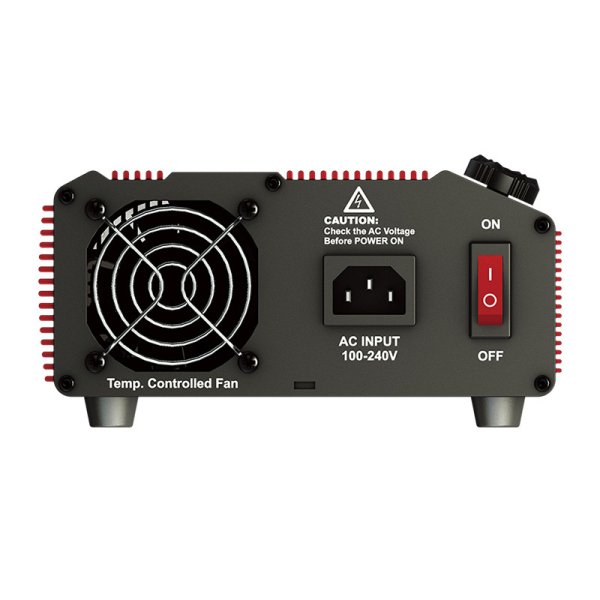

The main DC port supplies up to 50 amps, in addition to which the power supply has three output ports with on/off capability. With this solution, the power supply gives you multiple power options. On the right side of the power supply there are also two USB ports for powering external devices (such as a smartphone or tablet). On the left side, in turn, is the main power switch.

Easy operation

The eFuel power supply model has a convenient knob for adjusting the voltage from 15 to 30 volts. In turn, the easy-to-read LCD screen displays the current output voltage and current, which makes it much easier to operate the power supply. Universal AC 100 - 240 V power supply makes the power supply usable worldwide without the need for power adapters.

PFC input

Active PFC input means less interference with AC power supply. It is the circuit responsible for changing/correcting the power factor value, that is, changing the phase shift angle between current and voltage. The phase shift between current and voltage causes reactive power to be emitted.

Included

• power supply
• power cable
